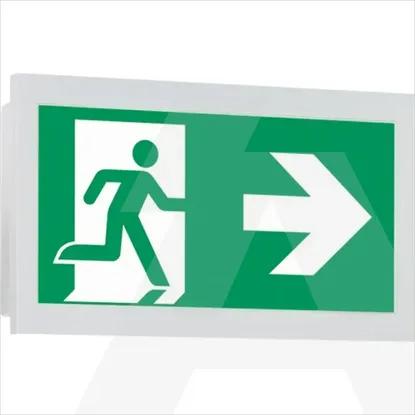

40071353260 | Wall mounting SET, surface mounting for GuideLed 10811 (20m) / 11811 (30m), 1-8h/D,
Code: 1953655
ManufacturerEaton
Catalog number40071353260
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344216
Details
- •CGLine+
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Width120mm
Lamp holderOther
Protection classII
Length220mm
Number of poles6
Power supply systemPeripheral (individual battery)
Colour housingGrey
Number of lighting heads1
Lamp typeLED not exchangeable
Type of control gearLED operating device voltage-controlled
Height/depth30mm
Material coverPlastic, opal
Nominal voltage220 - 240V
Suitable for labelling typeInsert sheet/plate
Impact strengthIK03
Material housingPlastic
Battery qualityLithium-ions
Connection typePlug-in connection
Luminaire with limited surface temperature, sign "D“No
Monitoring equipmentSafety module for monitoring (central feeded system)
With light sourceNo
With remote switch connectionYes
Voltage typeAC
Recognition distance20m
With pictogramNo
Rated luminous flux according to IEC 62722-2-1115lm
Rated life time L70/B50 at 25 °C50000h
Type of wiringSuitable for through wiring
Nominal operation time1 - 8h
Light distributorDiffuser lens/optic/panel
Rated ambient temperature according to IEC62722-2-10 - 30°C
Power factor0.88
Degree of protection (IP)IP20
Max. system power4.1W
