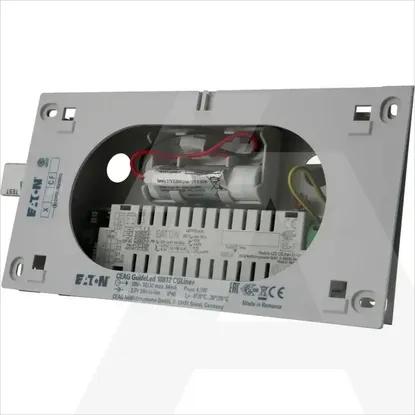

40071353261 | Wall mounting SET, recessed mounting for GuideLed 10812, 1-8h/D, CGLine+, 20M
Code: 1953656
ManufacturerEaton
Catalog number40071353261
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344223
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Connection typePlug-in connection
Conductor cross section2.5mm²
Width115mm
Lamp holderOther
Protection classII
Colour housingGrey
Number of poles6
Voltage typeAC
Rated luminous flux according to IEC 62722-2-125lm
With light sourceNo
Material coverPlastic, opal
Power supply systemPeripheral (individual battery)
Impact strengthIK03
Built-in length220mm
Suitable for labelling typeInsert sheet/plate
Height/depth40mm
Lamp typeLED not exchangeable
Recognition distance20m
Monitoring equipmentSafety module for monitoring (central feeded system)
Type of control gearLED operating device voltage-controlled
Luminaire with limited surface temperature, sign "D“No
Nominal voltage220 - 240V
Built-in width115mm
Battery qualityLithium-ions
With pictogramNo
With remote switch connectionYes
Number of lighting heads1
Material housingPlastic
Length220mm
Power factor0.88
Light distributorDiffuser lens/optic/panel
Rated ambient temperature according to IEC62722-2-10 - 30°C
Type of wiringSuitable for through wiring
Nominal operation time1 - 8h
Rated life time L70/B50 at 25 °C50000h
Built-in height/depth2mm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP20
Max. system power4.1W
