40071353278
Code: 1953671
ManufacturerEaton
Catalog number40071353278
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344391
Details

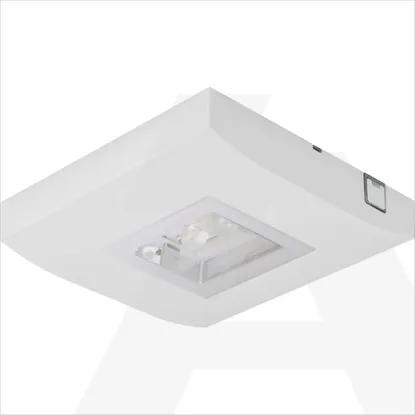

- •Emergency luminaire GuideLed SL 13822, 1-8h/D,
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width195mm
Protection classI
Lamp holderOther
Conductor cross section2.5mm²
Voltage typeAC
Material coverPlastic, opal
Impact strengthIK03
Suitable for labelling typeOther
Length195mm
Material housingPlastic
Number of lighting heads1
Colour housingGrey
Lamp typeLED not exchangeable
Power supply systemPeripheral (individual battery)
Height/depth40mm
Connection typePlug-in connection
Battery qualityLithium-ions
Number of poles6
Type of control gearLED operating device current-controlled
Luminaire with limited surface temperature, sign "D“No
Colour temperature6500 - 6500K
With light sourceYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Nominal voltage220 - 240V
With remote switch connectionYes
Rated luminous flux according to IEC 62722-2-1115lm
Power factor0.91
Nominal operation time1 - 8h
Rated ambient temperature according to IEC62722-2-10 - 30°C
Type of wiringSuitable for through wiring
Light distributorFocal lens
Rated life time L70/B50 at 25 °C50000h
With pictogramNo
Mounting methodCeiling surface mounting
Degree of protection (IP)IP41
Max. system power6.7W
