40071353279
Code: 1953672
ManufacturerEaton
Catalog number40071353279

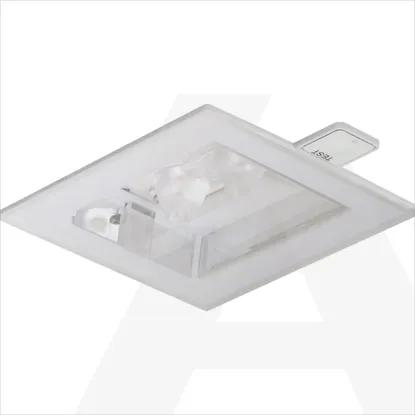

TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344407
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Protection classI
Number of poles6
Power supply systemPeripheral (individual battery)
Width195mm
Voltage typeAC
Type of control gearLED operating device current-controlled
Connection typePlug-in connection
Conductor cross section2.5mm²
Colour housingGrey
Suitable for labelling typeOther
Lamp holderOther
Battery qualityLithium-ions
Impact strengthIK03
Height/depth40mm
Number of lighting heads1
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Length195mm
Material coverPlastic, opal
Material housingPlastic
Luminaire with limited surface temperature, sign "D“No
Light distributorFocal lens
Type of wiringSuitable for through wiring
With light sourceYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Colour temperature6500 - 6500K
Rated life time L70/B50 at 25 °C50000h
Rated ambient temperature according to IEC62722-2-10 - 30°C
With pictogramNo
Rated luminous flux according to IEC 62722-2-1115lm
With remote switch connectionYes
Power factor0.91
Nominal operation time1 - 8h
Mounting methodCeiling surface mounting
Degree of protection (IP)IP41
Max. system power6.7W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
40071353279
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Protection class
I
Number of poles
6
Power supply system
Peripheral (individual battery)
Width
195mm
Voltage type
AC
Type of control gear
LED operating device current-controlled
Connection type
Plug-in connection
Conductor cross section
2.5mm²
Colour housing
Grey
Suitable for labelling type
Other
Lamp holder
Other
Battery quality
Lithium-ions
Impact strength
IK03
Height/depth
40mm
Number of lighting heads
1
Nominal voltage
220 .. 240V
Lamp type
LED not exchangeable
Length
195mm
Material cover
Plastic, opal
Material housing
Plastic
Luminaire with limited surface temperature, sign "D“
Light distributor
Focal lens
Type of wiring
Suitable for through wiring
With light source
Monitoring equipment
Safety module for monitoring (central feeded system)
Colour temperature
6500 .. 6500K
Rated life time L70/B50 at 25 °C
50000h
Rated ambient temperature according to IEC62722-2-1
0 .. 30°C
With pictogram
Rated luminous flux according to IEC 62722-2-1
115lm
With remote switch connection
Power factor
0.91
Nominal operation time
1 .. 8h
Mounting method
Ceiling surface mounting
Degree of protection (IP)
IP41
Max. system power
6.7W
