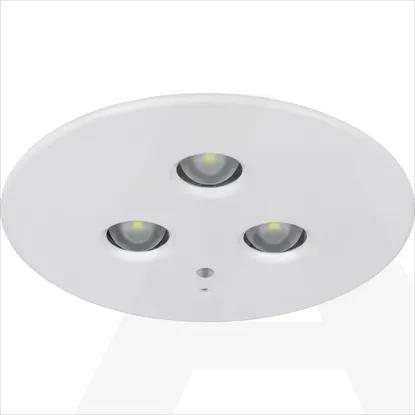

40071353365 | Emergency luminaire 3583, 1-8h/D, 3XLED escape routes, CGLine+, recessed mounting
Code: 1953677
ManufacturerEaton
Catalog number40071353365
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344544
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Width80mm
Colour housingAluminium
Lamp holderOther
Outer diameter80mm
Conductor cross section2.5mm²
Connection typePlug-in connection
Number of poles6
Impact strengthIK03
Nominal voltage220 - 240V
With light sourceYes
Material coverOther
Built-in diameter80mm
Voltage typeAC
Material housingAluminium
Monitoring equipmentSafety module for monitoring (central feeded system)
Type of control gearLED operating device current-controlled
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“No
Battery qualityLithium-ions
Number of lighting heads1
Height/depth80mm
Length500mm
Power supply systemPeripheral (individual battery)
Suitable for labelling typeOther
Lamp typeLED not exchangeable
Type of wiringSuitable for through wiring
With pictogramNo
Rated luminous flux according to IEC 62722-2-1385lm
Colour temperature6500 - 6500K
Built-in height/depth3mm
Nominal operation time1 - 8h
Rated ambient temperature according to IEC62722-2-10 - 30°C
Light distributorFocal lens
Power factor0.93
Rated life time L70/B50 at 25 °C50000h
Mounting methodBuilt-in
Degree of protection (IP)IP20
Max. system power6.6W
