Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodCeiling surface mounting
Width35mm
Protection classII
Number of poles2
Length225mm
Nominal voltage220 - 240V
Connection typePlug-in connection
Luminaire with limited surface temperature, sign "D“No
Type of control gearLED operating device voltage-controlled
Power supply systemCentral (central battery)
Degree of protection (IP)IP40
Height/depth30mm
With light sourceNo
With remote switch connectionYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Conductor cross section2.5mm²
Material housingPlastic
Voltage typeDC
Recognition distance20m
Impact strengthIK03
With pictogramNo
Type of wiringEnding
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

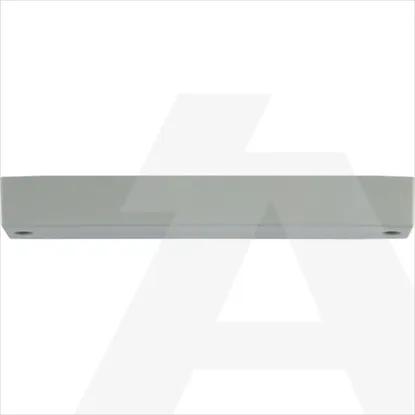

40071353610 | Ceiling mounting SET for 10021, Cg-s, with canopy, 20M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Ceiling surface mounting
Width
35mm
Protection class
II
Number of poles
2
Length
225mm
Nominal voltage
220 .. 240V
Connection type
Plug-in connection
Luminaire with limited surface temperature, sign "D“
Type of control gear
LED operating device voltage-controlled
Power supply system
Central (central battery)
Degree of protection (IP)
IP40
Height/depth
30mm
With light source
With remote switch connection
Monitoring equipment
Safety module for monitoring (central feeded system)
Conductor cross section
2.5mm²
Material housing
Plastic
Voltage type
DC
Recognition distance
20m
Impact strength
IK03
With pictogram
Type of wiring
Ending
Rated ambient temperature according to IEC62722-2-1
-20 .. 40°C
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
