40071354483
Code: 1953738
ManufacturerEaton
Catalog number40071354483
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539342847
Details

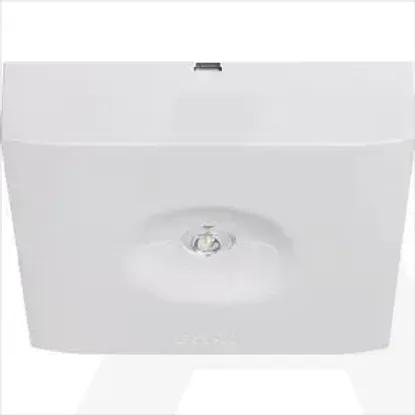

- •Emergency luminaire GuideLed SL 13022.1, CG-S,
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Colour housingWhite
Connection typePlug-in connection
Width125mm
Protection classI
Conductor cross section2.5mm²
Voltage typeDC
Number of poles3
Impact strengthIK03
Material housingPlastic
With remote switch connectionYes
With light sourceYes
Nominal voltage220 - 240V
Type of control gearLED operating device current-controlled
Power supply systemCentral (central battery)
Height/depth30mm
Lamp typeLED not exchangeable
Luminaire with limited surface temperature, sign "D“No
Colour temperature6500 - 6500K
Monitoring equipmentSafety module for monitoring (central feeded system)
Length125mm
Rated luminous flux according to IEC 62722-2-1250lm
Light distributorFocal lens
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
With pictogramNo
Mounting methodCeiling surface mounting
Degree of protection (IP)IP41
