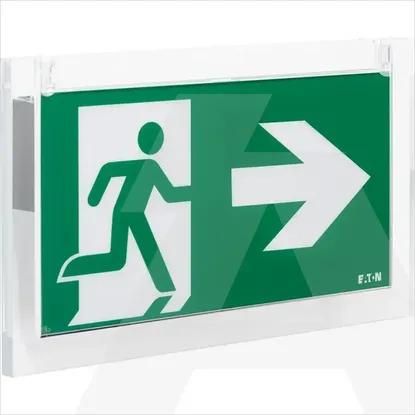

40071354593 | Emergency sign luminaire CrystalWay 19022, Cg-s, mounting on wall/ceiling, SET of
Code: 1953780
ManufacturerEaton
Catalog number40071354593
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191602383
Details
- •pictograms, 30M
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Lamp typeLED not exchangeable
Height/depth183mm
Type of control gearLED operating device current-controlled
Width30mm
With pictogramYes
Luminaire with limited surface temperature, sign "D“No
Impact strengthIK04
With light sourceYes
Voltage typeDC
Colour housingWhite
Length331mm
Material housingPlastic
Nominal voltage220 - 240V
With remote switch connectionYes
Suitable for labelling typeInsert sheet/plate
Connection typePlug-in connection
Power supply systemCentral (central battery)
Monitoring equipmentSafety module for monitoring (central feeded system)
Conductor cross section2.5mm²
Number of poles3
Material coverPlastic, transparent
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Degree of protection (IP)IP42
