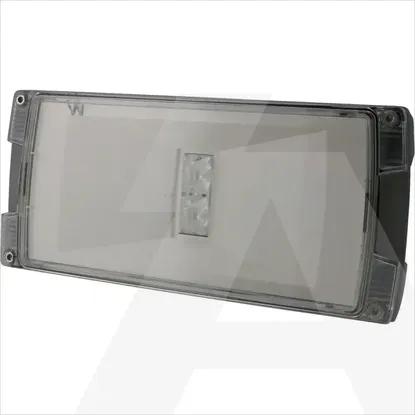

40071354872 | Emergency luminaire Atlantic LED R 1-8h/D CGLine+, IP65, asymmetric optics
Code: 1953822
ManufacturerEaton
Catalog number40071354872
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344469
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Voltage typeAC
Width135mm
Colour housingGrey
Conductor cross section2.5mm²
Lamp holderOther
Impact strengthIK10
Number of lighting heads1
Battery qualityLithium-ions
Type of control gearLED operating device current-controlled
Number of poles6
Power supply systemPeripheral (individual battery)
Length303mm
Material coverPlastic, transparent
Lamp typeLED not exchangeable
Height/depth62mm
Suitable for labelling typeOther
Material housingAluminium
Connection typePlug-in connection
Luminaire with limited surface temperature, sign "D“Yes
Nominal operation time1 - 8h
Rated life time L70/B50 at 25 °C13.88889h
Light distributorFocal lens
Power factor0.91
Monitoring equipmentSafety module for monitoring (central feeded system)
With pictogramNo
With remote switch connectionYes
Recognition distance24m
With light sourceYes
Nominal voltage220 - 240V
Type of wiringSuitable for through wiring
Degree of protection (IP)IP65
