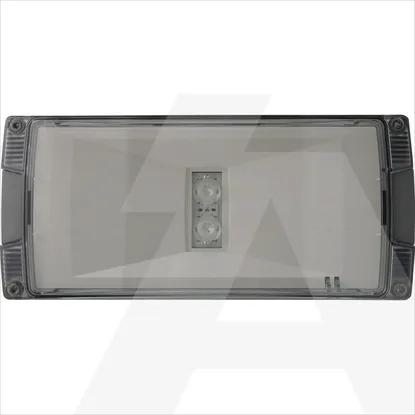

40071354873 | Emergency luminaire Atlantic LED O 1-8h/D CGLine+, IP65, symmetric optics
Code: 1953823
ManufacturerEaton
Catalog number40071354873
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344476
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Width135mm
Power supply systemPeripheral (individual battery)
Voltage typeAC
Conductor cross section2.5mm²
Type of control gearLED operating device current-controlled
Lamp holderOther
Connection typePlug-in connection
Colour housingGrey
Nominal voltage220 - 240V
Monitoring equipmentSafety module for monitoring (central feeded system)
Material housingAluminium
Battery qualityLithium-ions
Number of poles6
Height/depth62mm
Recognition distance24m
Number of lighting heads1
Length303mm
Suitable for labelling typeOther
Colour temperature6500 - 6500K
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“Yes
Material coverPlastic, transparent
Rated luminous flux according to IEC 62722-2-1225lm
Impact strengthIK10
With light sourceYes
Lamp typeLED not exchangeable
Nominal operation time1 - 8h
With pictogramNo
Light distributorFocal lens
Type of wiringSuitable for through wiring
Power factor0.91
Rated life time L70/B50 at 25 °C13.88889h
Degree of protection (IP)IP65
