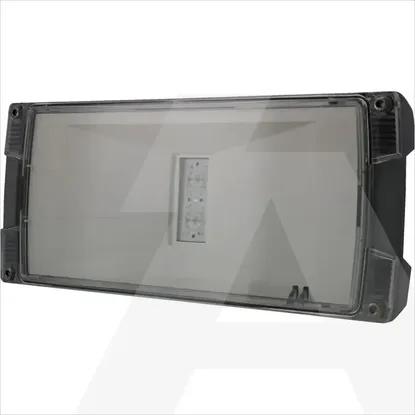

40071354875 | Emergency luminaire Atlantic LED s 1-8h/D CGLine+, IP65, single-sided, no pictogram,
Code: 1953825
ManufacturerEaton
Catalog number40071354875
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344490
Details
- •up to -20stC
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Connection typePlug-in connection
Number of poles6
Length303mm
Voltage typeAC
Colour housingGrey
Protection classI
Lamp holderOther
Suitable for labelling typeInsert sheet/plate
Power supply systemPeripheral (individual battery)
Width136mm
Type of control gearLED operating device current-controlled
Height/depth62mm
Material housingAluminium
Material coverPlastic, transparent
Monitoring equipmentSafety module for monitoring (central feeded system)
With pictogramNo
Rated life time L70/B50 at 25 °C13.88889h
Impact strengthIK10
Nominal voltage220 - 240V
Luminaire with limited surface temperature, sign "D“Yes
With light sourceYes
Type of wiringSuitable for through wiring
Light distributorDiffuser lens/optic/panel
Power factor0.91
Nominal operation time1 - 8h
Colour temperature6500 - 6500K
With remote switch connectionYes
Number of lighting heads1
Battery qualityLithium-ions
Recognition distance24m
Lamp typeLED not exchangeable
Degree of protection (IP)IP65
