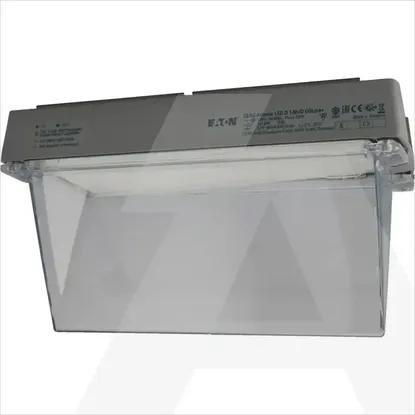

40071354876 | Emergency luminaire Atlantic LED D 1-8h/D CGLine+, IP65, double-sided, no pictogram,
Code: 1953826
ManufacturerEaton
Catalog number40071354876
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344506
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Power supply systemPeripheral (individual battery)
Lamp holderOther
Width136mm
Protection classI
Conductor cross section2.5mm²
Number of poles6
Length303mm
Colour housingGrey
Type of indicatorSingle/double-sided
Suitable for labelling typeInsert sheet/plate
Type of control gearLED operating device current-controlled
Connection typePlug-in connection
Luminaire with limited surface temperature, sign "D“Yes
Number of lighting heads1
Monitoring equipmentSafety module for monitoring (central feeded system)
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Light distributorDiffuser lens/optic/panel
Material housingAluminium
Nominal operation time1 - 8h
Power factor0.91
Height/depth166mm
Rated life time L70/B50 at 25 °C13.888888888888806h
Battery qualityLithium-ions
Recognition distance24m
Material coverPlastic, transparent
With remote switch connectionYes
With light sourceYes
With pictogramNo
Impact strengthIK10
Type of wiringSuitable for through wiring
Degree of protection (IP)IP65
