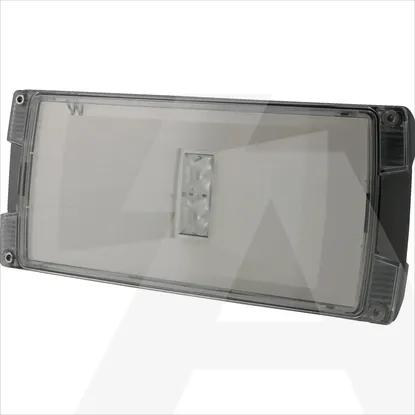

40071354877 | Emergency luminaire Atlantic LED R 1-8h/D CGLine+, IP65, asymmetric optics, up to
Code: 1953827
ManufacturerEaton
Catalog number40071354877
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344513
Details
- •-20stC
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Battery qualityLithium-ions
Number of poles6
Width136mm
Colour housingGrey
Power supply systemPeripheral (individual battery)
Voltage typeAC
Height/depth62mm
Type of control gearLED operating device current-controlled
Lamp holderOther
Suitable for labelling typeOther
Connection typePlug-in connection
Protection classI
Length303mm
Material coverPlastic, transparent
Number of lighting heads1
Impact strengthIK10
Nominal voltage220 - 240V
Lamp typeLED not exchangeable
Material housingAluminium
Luminaire with limited surface temperature, sign "D“Yes
With pictogramNo
Colour temperature6500 - 6500K
Monitoring equipmentSafety module for monitoring (central feeded system)
Light distributorFocal lens
Type of wiringSuitable for through wiring
With remote switch connectionYes
Rated life time L70/B50 at 25 °C13.88889h
With light sourceYes
Rated luminous flux according to IEC 62722-2-1225lm
Recognition distance24m
Power factor0.91
Nominal operation time1 - 8h
Degree of protection (IP)IP65
