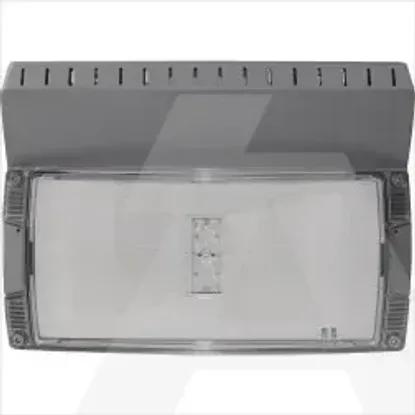

40071354879 | Emergency luminaire Outdoor Wall 1-8h/D CGLine+, IP65, asymmetric optics, with battery
Code: 1953829
ManufacturerEaton
Catalog number40071354879
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539344537
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Protection classI
Width184mm
Voltage typeAC
Lamp holderNone
Connection typePlug-in connection
Power supply systemPeripheral (individual battery)
Conductor cross section2.5mm²
Colour housingGrey
Type of control gearLED operating device current-controlled
Number of lighting heads1
Lamp typeLED not exchangeable
Suitable for labelling typeOther
Length303mm
Material housingAluminium
Rated ambient temperature according to IEC62722-2-1-20 - 35°C
Height/depth160mm
Nominal voltage220 - 240V
Rated life time L70/B50 at 25 °C50000h
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“Yes
With pictogramNo
Light distributorFocal lens
Rated luminous flux according to IEC 62722-2-1250lm
Monitoring equipmentSafety module for monitoring (central feeded system)
Nominal operation time1 - 8h
Battery qualityLithium-ions
With light sourceYes
Colour temperature6500 - 6500K
Material coverPlastic, transparent
Impact strengthIK10
Type of wiringSuitable for through wiring
Number of poles6
Power factor0.91
Mounting methodWall surface mounted
Degree of protection (IP)IP65
Max. system power9.3W
