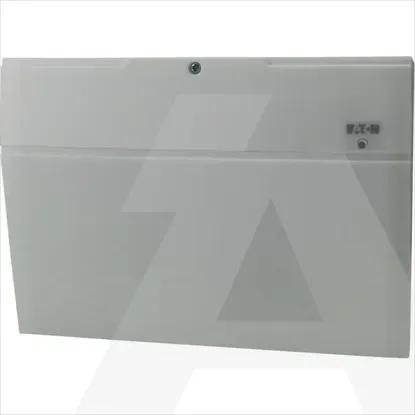

40071354900 | Emergency sign luminaire Euro X LED at 3H
Code: 1953835
ManufacturerEaton
Catalog number40071354900
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539331018
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Suitable for labelling typeSticker
Material coverPlastic, opal
Colour housingWhite
Number of lighting heads1
Voltage typeAC
Conductor cross section2.5mm²
Lamp typeLED not exchangeable
Connection typePlug-in connection
Type of indicatorSingle/double-sided
Impact strengthIK03
Power supply systemPeripheral (individual battery)
Width60mm
Length230mm
Height/depth163mm
Type of control gearLED operating device voltage-controlled
Material housingPlastic
Number of poles3
Lamp holderOther
Battery qualityLithium-ions
Nominal voltage220 - 240V
Power factor0.5
Rated ambient temperature according to IEC62722-2-10 - 30°C
Type of wiringSuitable for through wiring
With light sourceYes
Nominal operation time3 - 3h
Luminaire with limited surface temperature, sign "D“No
Light distributorDiffuser lens/optic/panel
Monitoring equipmentAutomatic self test
Rated life time L70/B50 at 25 °C50000h
With remote switch connectionYes
Recognition distance20m
With pictogramYes
Rated luminous flux according to IEC 62722-2-1115lm
Mounting methodSurface mounting/recessed mounting
Degree of protection (IP)IP54
Max. system power4.5W
