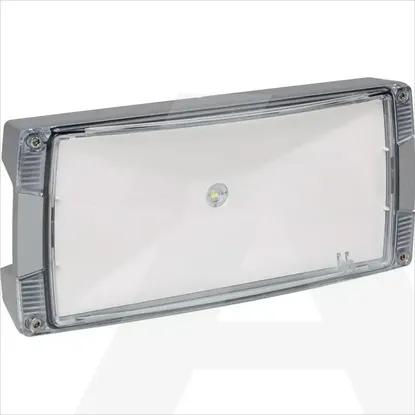

40071355604 | Emergency luminaire Atlantic LED II O Cg-s, IP66, symmetric optics
Code: 1953928
ManufacturerEaton
Catalog number40071355604
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539357742
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Colour housingGrey
Width136mm
Connection typePlug-in connection
Voltage typeDC
Power supply systemCentral (central battery)
Length304mm
With remote switch connectionYes
Material coverPlastic, transparent
Material housingAluminium
Luminaire with limited surface temperature, sign "D“Yes
With light sourceYes
Height/depth62mm
Number of poles3
Nominal voltage220 - 240V
Impact strengthIK09
Lamp typeLED not exchangeable
Luminous flux in standby mode260lm
Colour temperature6000 - 6000K
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Type of wiringSuitable for through wiring
Power factor0.488
Light distributorFocal lens
With pictogramNo
Monitoring equipmentSafety module for monitoring (central feeded system)
Rated luminous flux according to IEC 62722-2-1260lm
Mounting methodCeiling surface mounting
Degree of protection (IP)IP66
