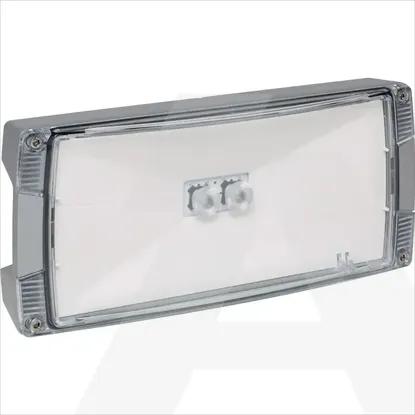

40071355607 | Emergency luminaire Atlantic LED II O Cg-s, IP66, symmetric optics, narrow beam optics
Code: 1953931
ManufacturerEaton
Catalog number40071355607
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code4012539357773
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Width136mm
Colour housingGrey
Length304mm
Number of poles3
Voltage typeDC
Connection typePlug-in connection
Power supply systemCentral (central battery)
Height/depth62mm
Material housingAluminium
With light sourceYes
Nominal voltage220 - 240V
Impact strengthIK09
Lamp typeLED not exchangeable
Material coverPlastic, transparent
Colour temperature6000 - 6000K
Rated luminous flux according to IEC 62722-2-1380lm
Monitoring equipmentSafety module for monitoring (central feeded system)
With remote switch connectionYes
With pictogramNo
Type of wiringSuitable for through wiring
Luminous flux in standby mode380lm
Luminaire with limited surface temperature, sign "D“Yes
Power factor0.588
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Light distributorFocal lens
Mounting methodCeiling surface mounting
Degree of protection (IP)IP66
