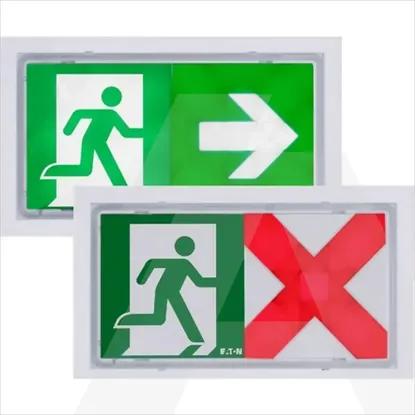

40071777003 | Emergency sign luminaire Matrix for adaptive evacuation, 1-8h, IP65, CGLine+
Code: 1954137
ManufacturerEaton
Catalog number40071777003
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191609252
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Conductor cross section2.5mm²
Nominal voltage220 - 240V
Lamp holderNone
Colour housingWhite
Suitable for labelling typeOther
Impact strengthIK07
Material housingPlastic
Connection typePlug-in connection
Power supply systemPeripheral (individual battery)
Number of lighting heads138
Built-in length248mm
Lamp typeLED not exchangeable
Number of poles6
Height/depth145mm
Width43mm
Material coverPlastic, transparent
Built-in width43mm
Voltage typeAC
Battery qualityLithium-ions
Protection classII
Type of control gearLED operating device current-controlled
Length248mm
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“No
Recognition distance20m
Suitable for number of lamps1
Light distributorDiffuser lens/optic/panel
With light sourceYes
Colour temperature5800 - 6500K
Luminous flux in standby mode100lm
Built-in height/depth145mm
Power factor0.5
Rated luminous flux according to IEC 62722-2-17lm
Rated ambient temperature according to IEC62722-2-15 - 35°C
Nominal operation time1 - 3h
Monitoring equipmentSafety module for monitoring (central feeded system)
Type of wiringSuitable for through wiring
Rated life time L70/B50 at 25 °C50000h
With pictogramYes
Degree of protection (IP)IP65
Max. system power6.6W
