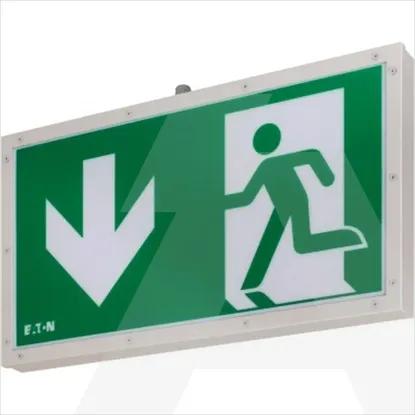

40071777015 | Emergency sign luminaire 46811 LED 1-3h CGLine+
Code: 1954140
ManufacturerEaton
Catalog number40071777015
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code3660191806132
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Connection typePlug-in connection
Type of control gearLED operating device current-controlled
Height/depth64mm
Colour housingWhite
Voltage typeAC
Lamp holderNone
Length654mm
Material housingSteel
Number of poles6
Built-in width354mm
Width354mm
Suitable for labelling typeAcrylic plate
Protection classI
Power supply systemPeripheral (individual battery)
Conductor cross section2.5mm²
Lamp typeLED not exchangeable
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Impact strengthIK08
Nominal voltage220 - 240V
Number of lighting heads8
Built-in length654mm
Battery qualityLithium-ions
Material coverPlastic, opal
With remote switch connectionYes
With pictogramNo
Monitoring equipmentSafety module for monitoring (central feeded system)
Rated ambient temperature according to IEC62722-2-15 - 35°C
Light distributorDiffuser lens/optic/panel
Built-in height/depth61mm
Recognition distance60m
Nominal operation time1 - 3h
Power factor0.74
Mounting methodWall surface mounted
Degree of protection (IP)IP65
Max. system power11W
