Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Lamp holderNone
Power supply systemPeripheral (individual battery)
Voltage typeAC
Protection classII
Type of control gearLED operating device current-controlled
Colour housingWhite
Width178mm
Connection typePlug-in connection
Conductor cross section1.5mm²
Height/depth106mm
Length417mm
Number of poles3
Suitable for labelling typeOther
Material housingPlastic
Impact strengthIK07
Number of lighting heads2
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Lamp typeLED not exchangeable
Material coverPlastic, transparent
With pictogramNo
Rated luminous flux according to IEC 62722-2-1800lm
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-15 - 40°C
With remote switch connectionYes
Monitoring equipmentNone
Suitable for number of lamps2
Battery qualityNiCd
Nominal voltage220 - 240V
Light distributorRefractor lens
Nominal operation time3 - 3h
Power factor0.9
Degree of protection (IP)IP65
Max. system power4.5W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

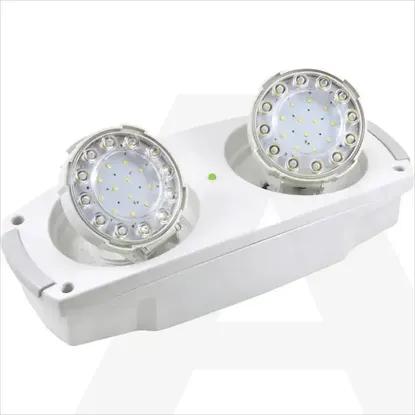

BL2MD-E3 | Emergency luminaire BeamLite II 2x400lm 3H
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Lamp holder
None
Power supply system
Peripheral (individual battery)
Voltage type
AC
Protection class
II
Type of control gear
LED operating device current-controlled
Colour housing
White
Width
178mm
Connection type
Plug-in connection
Conductor cross section
1.5mm²
Height/depth
106mm
Length
417mm
Number of poles
3
Suitable for labelling type
Other
Material housing
Plastic
Impact strength
IK07
Number of lighting heads
2
Luminaire with limited surface temperature, sign "D“
With light source
Lamp type
LED not exchangeable
Material cover
Plastic, transparent
With pictogram
Rated luminous flux according to IEC 62722-2-1
800lm
Type of wiring
Suitable for through wiring
Rated ambient temperature according to IEC62722-2-1
5 .. 40°C
With remote switch connection
Monitoring equipment
None
Suitable for number of lamps
2
Battery quality
NiCd
Nominal voltage
220 .. 240V
Light distributor
Refractor lens
Nominal operation time
3 .. 3h
Power factor
0.9
Degree of protection (IP)
IP65
Max. system power
4.5W
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
