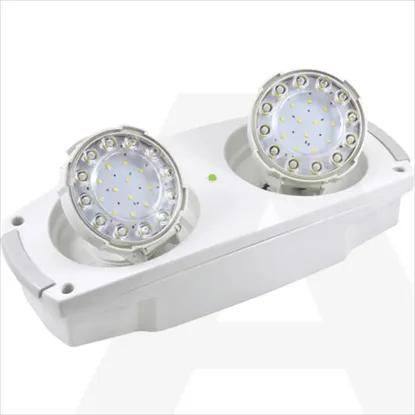

BL2MD-E3CGL | Emergency luminaire BeamLite II 2x400lm 3H CGL
Code: 1956256
ManufacturerEaton
Catalog numberBL2MD-E3CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5205050910032
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Lamp holderNone
Conductor cross section1.5mm²
Length417mm
Number of poles3
Height/depth106mm
Power supply systemPeripheral (individual battery)
Lamp typeLED not exchangeable
Voltage typeAC
Connection typePlug-in connection
Width178mm
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps2
Nominal voltage220 - 240V
Material coverPlastic, transparent
With remote switch connectionYes
Suitable for labelling typeOther
With light sourceYes
Impact strengthIK07
Type of control gearLED operating device current-controlled
Battery qualityNiCd
Material housingPlastic
Monitoring equipmentSafety module for monitoring (central feeded system)
Number of lighting heads2
Colour housingWhite
With pictogramNo
Rated luminous flux according to IEC 62722-2-1800lm
Rated ambient temperature according to IEC62722-2-15 - 40°C
Light distributorRefractor lens
Power factor0.9
Type of wiringSuitable for through wiring
Nominal operation time3 - 3h
Degree of protection (IP)IP65
Max. system power4.5W
