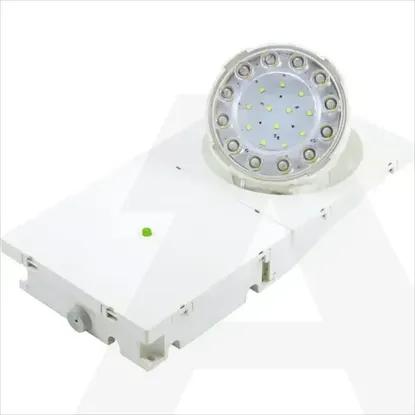

BT1SC-D1 | Emergency luminaire BeamTech Small 1x500lm 1H
Code: 1956304
ManufacturerEaton
Catalog numberBT1SC-D1
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5205050909067
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Width155mm
Type of control gearNot required
Impact strengthIK07
Nominal voltage220 - 240V
Number of poles3
Connection typePlug-in connection
Voltage typeAC
Number of lighting heads1
Lamp typeLED not exchangeable
Material housingPlastic
Length311mm
Suitable for labelling typeOther
Battery qualityNiCd
Power supply systemPeripheral (individual battery)
Luminaire with limited surface temperature, sign "D“No
Colour housingWhite
Lamp holderNone
With light sourceYes
Conductor cross section1.5mm²
Height/depth69mm
Material coverPlastic, transparent
Suitable for number of lamps1
With remote switch connectionYes
Monitoring equipmentNone
Nominal operation time1 - 1h
Light distributorRefractor lens
Rated ambient temperature according to IEC62722-2-15 - 40°C
With pictogramNo
Type of wiringSuitable for through wiring
Rated luminous flux according to IEC 62722-2-1500lm
Power factor0.7
Degree of protection (IP)IP65
Max. system power1.6W
