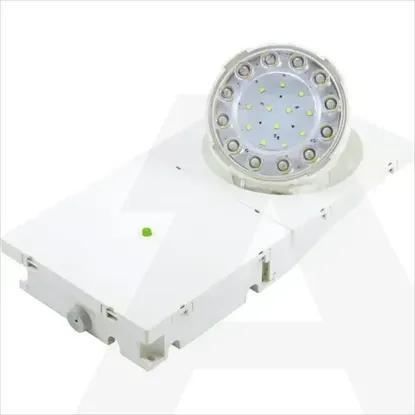

BT1SL-D3 | Emergency luminaire BeamTech Small 1x500lm 3H
Code: 1956308
ManufacturerEaton
Catalog numberBT1SL-D3
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5205050909074
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classII
Lamp typeLED not exchangeable
Material coverPlastic, transparent
Voltage typeAC
Material housingPlastic
Height/depth69mm
Colour housingWhite
Number of lighting heads1
Length311mm
Connection typePlug-in connection
Conductor cross section1.5mm²
Suitable for labelling typeOther
Width155mm
Type of control gearNot required
Number of poles3
Lamp holderNone
Power supply systemPeripheral (individual battery)
Impact strengthIK07
Battery qualityLithium-ions
Monitoring equipmentNone
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Light distributorRefractor lens
Type of wiringSuitable for through wiring
With remote switch connectionYes
Nominal voltage220 - 240V
Nominal operation time3 - 3h
Rated ambient temperature according to IEC62722-2-15 - 50°C
Power factor0.9
Suitable for number of lamps1
Rated luminous flux according to IEC 62722-2-1500lm
With pictogramNo
Degree of protection (IP)IP65
Max. system power4.5W
