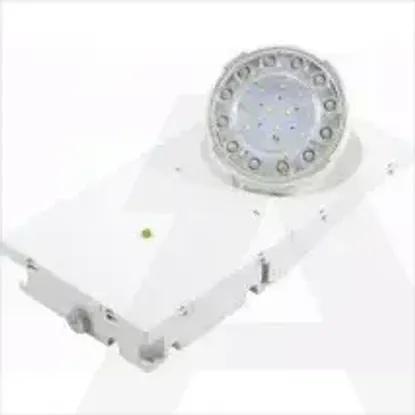

BT1SL-D3CGL | Emergency luminaire BeamTech Small 1x500lm 3H CGL
Code: 1956309
ManufacturerEaton
Catalog numberBT1SL-D3CGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5205050909913
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Material housingPlastic
Type of control gearNot required
Connection typePlug-in connection
Voltage typeAC
Height/depth69mm
Lamp holderNone
Width155mm
Conductor cross section1.5mm²
Suitable for labelling typeOther
Power supply systemPeripheral (individual battery)
Length311mm
Lamp typeLED not exchangeable
Protection classII
Number of poles3
Colour housingWhite
Nominal voltage220 - 240V
Rated luminous flux according to IEC 62722-2-1500lm
Material coverPlastic, transparent
Impact strengthIK07
With pictogramNo
Light distributorRefractor lens
Type of wiringSuitable for through wiring
Monitoring equipmentSafety module for monitoring (central feeded system)
Nominal operation time3 - 3h
Power factor0.9
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“No
Rated ambient temperature according to IEC62722-2-15 - 50°C
Number of lighting heads1
Battery qualityLithium-ions
Suitable for number of lamps1
With light sourceYes
Degree of protection (IP)IP65
Max. system power4.5W
