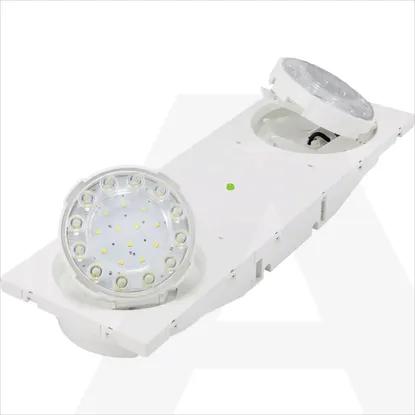

BT2SL-F1 | Emergency luminaire BeamTech Small 2x500lm 1H
Code: 1956323
ManufacturerEaton
Catalog numberBT2SL-F1
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5205050909104
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Lamp holderNone
Width155mm
Protection classII
Conductor cross section1.5mm²
Suitable for labelling typeOther
Height/depth69mm
Number of poles3
Colour housingWhite
Type of control gearNot required
Connection typePlug-in connection
Length466mm
Voltage typeAC
Power supply systemPeripheral (individual battery)
Lamp typeLED not exchangeable
Battery qualityLithium-ions
Number of lighting heads2
Material coverPlastic, transparent
Nominal voltage220 - 240V
Impact strengthIK07
Material housingPlastic
Monitoring equipmentNone
Rated luminous flux according to IEC 62722-2-11000lm
Suitable for number of lamps2
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Power factor0.9
Rated ambient temperature according to IEC62722-2-15 - 50°C
Light distributorRefractor lens
Nominal operation time1 - 1h
Type of wiringSuitable for through wiring
With pictogramNo
Degree of protection (IP)IP65
Max. system power4.5W
