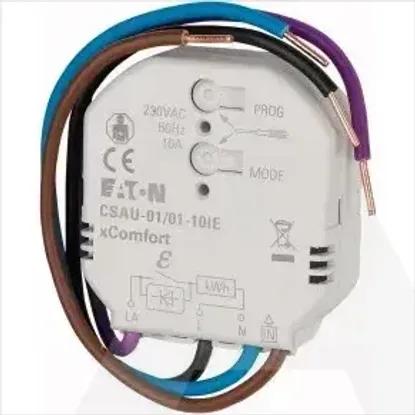

Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •EATON
Technical specifications
Mounting methodFlush mounted (plaster)
Rated operating voltage230 - 230V
Suitable for C-loadYes
Bus system KNXNo
Rated current10A
Max. number of switching contacts1
With bus connectionYes
Number of binary inputs1
Width in number of modular spacings3
Bus system LONNo
Bus system PowernetNo
Other bus systemsxComfort
Bus system radio frequentYes
Max. switching current10A
Max. switching power2300W
Output power2300W
Bus module detachableYes
Min. depth of built-in installation box18mm
Modular expandabilityNo
Different phases connectableNo
Radio frequent bidirectionalYes
With LED indicationYes
Degree of protection (IP)IP20
Bus system KNX radioNo
Local operation/hand operationYes
