Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •EATON
Technical specifications
Output power3680W
With LED indicationYes
Different phases connectableNo
Bus system PowernetNo
With bus connectionYes
Max. switching current16A
Modular expandabilityNo
Other bus systemsxComfort
Bus system radio frequentYes
Max. number of switching contacts1
Local operation/hand operationYes
Max. switching power3680W
Min. depth of built-in installation box18mm
Suitable for C-loadYes
Bus module detachableYes
Radio frequent bidirectionalYes
Bus system KNX radioNo
Number of binary inputs0
Bus system LONNo
Mounting methodFlush mounted (plaster)
Rated current16A
Rated operating voltage230 - 230V
Bus system KNXNo
Width in number of modular spacings3
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

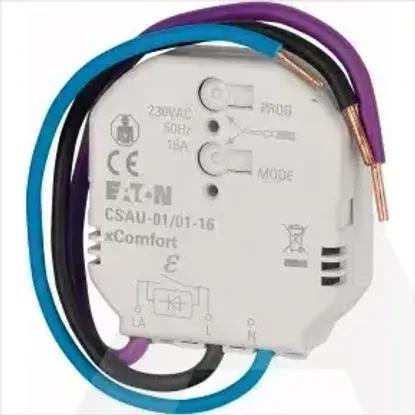

CSAU-01/01-16
