Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height85mm
Depth115mm
Width45mm
Rated operation current Ie at AC-1, 400 V45A
Rated operation current Ie at AC-4, 400 V6A
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Rated control supply voltage Us at AC 50HZ220 - 220V
Operating voltage at AC 60 Hz24 - 690V
Number of normally open contacts as main contact3
Modular versionNo
Rated operation power at AC-3, 400 V4kW
Type of electrical connection of main circuitSpring clamp connection
Rated operation power at AC-4, 400 V2.5kW
Rated control supply voltage Us at AC 60HZ220 - 220V
Rated operation power NEMA0kW
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-3, 400 V11A
Voltage type for actuatingAC
Rated control supply voltage Us at DC0 - 0V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

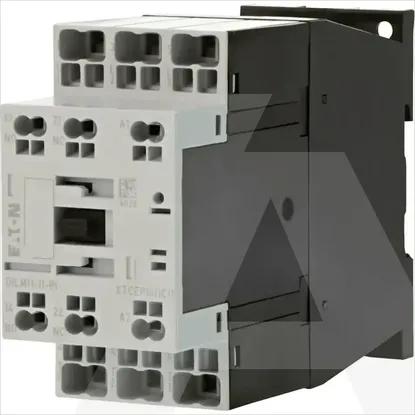

DILM11-11(220V50/60HZ)-PI
