Details
- •Low-voltage industrial components

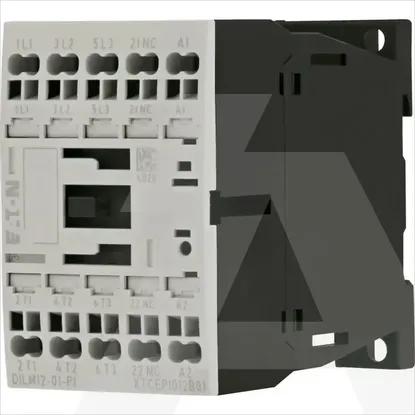

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Modular versionNo
Number of normally open contacts as main contact3
Depth75mm
Number of normally closed contacts as main contact0
Height68mm
Rated operation power at AC-3, 400 V5.5kW
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 60 Hz24 - 690V
Number of auxiliary contacts as normally closed contact1
Rated control supply voltage Us at AC 60HZ220 - 220V
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated control supply voltage Us at AC 50HZ220 - 220V
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-3, 400 V12A
Rated operation power at AC-4, 400 V3kW
Rated operation power NEMA0kW
Rated operation current Ie at AC-4, 400 V7A
Voltage type for actuatingAC
Rated control supply voltage Us at DC0 - 0V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM12-01(220V50/60HZ)-PI
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
45mm
Modular version
Number of normally open contacts as main contact
3
Depth
75mm
Number of normally closed contacts as main contact
0
Height
68mm
Rated operation power at AC-3, 400 V
5.5kW
Type of electrical connection of main circuit
Spring clamp connection
Operating voltage at AC 60 Hz
24 .. 690V
Number of auxiliary contacts as normally closed contact
1
Rated control supply voltage Us at AC 60HZ
220 .. 220V
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-1, 400 V
22A
Rated control supply voltage Us at AC 50HZ
220 .. 220V
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-3, 400 V
12A
Rated operation power at AC-4, 400 V
3kW
Rated operation power NEMA
0kW
Rated operation current Ie at AC-4, 400 V
7A
Voltage type for actuating
AC
Rated control supply voltage Us at DC
0 .. 0V
