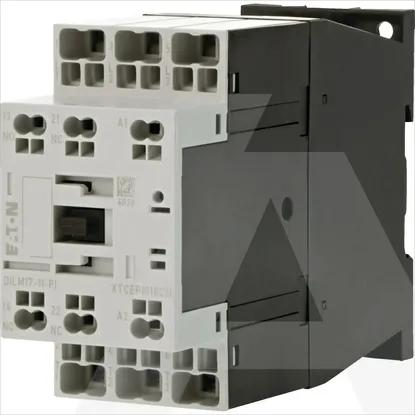

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width45mm
Rated operation power at AC-3, 400 V7.5kW
Rated operation current Ie at AC-4, 400 V10A
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-3, 400 V17A
Modular versionNo
Rated control supply voltage Us at AC 60HZ220 - 220V
Height85mm
Type of electrical connection of main circuitSpring clamp connection
Number of auxiliary contacts as normally closed contact1
Depth115mm
Number of auxiliary contacts as normally open contact1
Rated control supply voltage Us at AC 50HZ220 - 220V
Rated control supply voltage Us at DC0 - 0V
Rated operation current Ie at AC-1, 400 V45A
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation power at AC-4, 400 V4.5kW
Rated operation power NEMA0kW
Voltage type for actuatingAC
Operating voltage at AC 60 Hz24 - 690V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM17-11(220V50/60HZ)-PI
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Width
45mm
Rated operation power at AC-3, 400 V
7.5kW
Rated operation current Ie at AC-4, 400 V
10A
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-3, 400 V
17A
Modular version
Rated control supply voltage Us at AC 60HZ
220 .. 220V
Height
85mm
Type of electrical connection of main circuit
Spring clamp connection
Number of auxiliary contacts as normally closed contact
1
Depth
115mm
Number of auxiliary contacts as normally open contact
1
Rated control supply voltage Us at AC 50HZ
220 .. 220V
Rated control supply voltage Us at DC
0 .. 0V
Rated operation current Ie at AC-1, 400 V
45A
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Rated operation power at AC-4, 400 V
4.5kW
Rated operation power NEMA
0kW
Voltage type for actuating
AC
Operating voltage at AC 60 Hz
24 .. 690V
