Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth115mm
Modular versionNo
Rated operation power at AC-3, 400 V15kW
Number of normally open contacts as main contact3
Rated operation current Ie at AC-3, 400 V32A
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Width45mm
Number of normally closed contacts as main contact0
Height85mm
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V15A
Rated control supply voltage Us at DC0 - 0V
Rated control supply voltage Us at AC 50HZ220 - 220V
Rated operation current Ie at AC-1, 400 V45A
Rated operation power NEMA0kW
Type of electrical connection of main circuitSpring clamp connection
Rated control supply voltage Us at AC 60HZ220 - 220V
Rated operation power at AC-4, 400 V7kW
Voltage type for actuatingAC
Operating voltage at AC 60 Hz24 - 690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

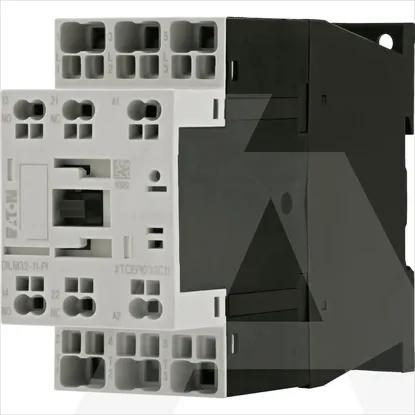

DILM32-11(220V50/60HZ)-PI
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Depth
115mm
Modular version
Rated operation power at AC-3, 400 V
15kW
Number of normally open contacts as main contact
3
Rated operation current Ie at AC-3, 400 V
32A
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Width
45mm
Number of normally closed contacts as main contact
0
Height
85mm
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-4, 400 V
15A
Rated control supply voltage Us at DC
0 .. 0V
Rated control supply voltage Us at AC 50HZ
220 .. 220V
Rated operation current Ie at AC-1, 400 V
45A
Rated operation power NEMA
0kW
Type of electrical connection of main circuit
Spring clamp connection
Rated control supply voltage Us at AC 60HZ
220 .. 220V
Rated operation power at AC-4, 400 V
7kW
Voltage type for actuating
AC
Operating voltage at AC 60 Hz
24 .. 690V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
