Details
- •Low-voltage industrial components

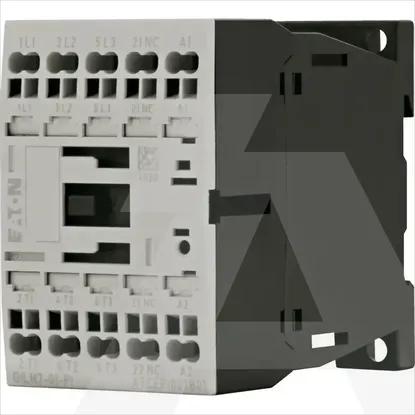

- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height68mm
Width45mm
Number of auxiliary contacts as normally closed contact1
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-3, 400 V7A
Modular versionNo
Rated operation power at AC-3, 400 V3kW
Rated operation current Ie at AC-1, 400 V22A
Depth75mm
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V5A
Rated operation power NEMA0kW
Voltage type for actuatingAC
Type of electrical connection of main circuitSpring clamp connection
Rated control supply voltage Us at AC 60HZ230 - 230V
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V2.2kW
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at DC0 - 0V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
DILM7-01(230V50/60HZ)-PI
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
68mm
Width
45mm
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
0
Rated operation current Ie at AC-3, 400 V
7A
Modular version
Rated operation power at AC-3, 400 V
3kW
Rated operation current Ie at AC-1, 400 V
22A
Depth
75mm
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-4, 400 V
5A
Rated operation power NEMA
0kW
Voltage type for actuating
AC
Type of electrical connection of main circuit
Spring clamp connection
Rated control supply voltage Us at AC 60HZ
230 .. 230V
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation power at AC-4, 400 V
2.2kW
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at DC
0 .. 0V
