Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth75mm
Width45mm
Height68mm
Modular versionNo
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact0
Rated control supply voltage Us at AC 50HZ220 - 220V
Number of auxiliary contacts as normally closed contact1
Rated control supply voltage Us at AC 60HZ220 - 220V
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V22A
Rated operation power at AC-3, 400 V4kW
Rated operation current Ie at AC-3, 400 V9A
Rated operation current Ie at AC-4, 400 V6A
Type of electrical connection of main circuitSpring clamp connection
Rated control supply voltage Us at DC0 - 0V
Rated operation power at AC-4, 400 V2.5kW
Rated operation power NEMA0kW
Voltage type for actuatingAC
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

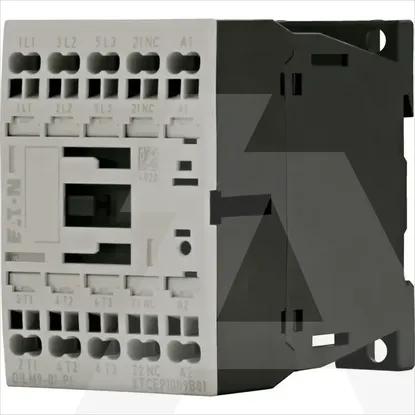

DILM9-01(220V50/60HZ)-PI
