Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
ExpandableYes
Width72mm
Height90mm
Depth58mm
With displayYes
Suitable for safety functionsNo
With time switch clockYes
Switching current8A
Number of digital inputs4
Power consumption3W
Number of analogue inputs4
Number of digital outputs4
Number of analogue outputs0
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Voltage type of supply voltageAC/DC
Supporting protocol for LONNo
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces other0
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
With optical interfaceNo
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Supporting protocol for CANNo
Number of HW-interfaces parallel0
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
RedundancyNo
With relay outputYes
Explosion safety category for gasNone
Explosion safety category for dustNone
Rail mounting possibleYes
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP20
Number of HW-interfaces USB0
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Appendant operation agent (Ex ib)No
IO link masterNo
Expansion deviceNo
Wall mounting/direct mountingYes
Basic deviceNo
Number of interfaces PROFINET0
Radio standard BluetoothNo
Front built-in possibleYes
Number of HW-interfaces Wireless0
Radio standard Wi-Fi 802.11No
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPNo
Performance level according to EN ISO 13849-1None
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supply voltage AC 50 Hz20.4 - 26.4V
Supply voltage DC10.2 - 28.8V
Radio standard GPRSNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supply voltage AC 60 Hz20.4 - 26.4V
Radio standard GSMNo
Radio standard UMTSNo
Rack-assembly possibleNo
Certified for UL hazardous location division 2Yes
SIL according to IEC 61508None
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location class IYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

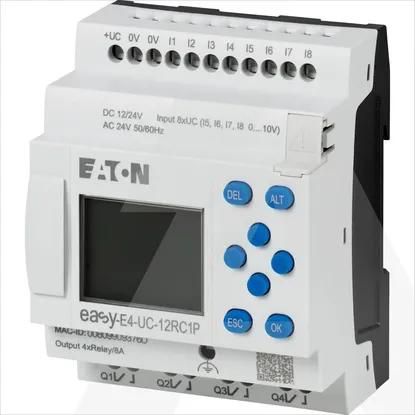

EASY-E4-UC-12RC1P
