Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Height90mm
Power consumption3W
Depth58mm
With time switch clockYes
Number of HW-interfaces parallel0
ExpandableYes
Number of digital inputs4
Number of digital outputs4
Switching current8A
Number of analogue outputs0
With displayNo
Number of analogue inputs4
Suitable for safety functionsNo
Supporting protocol for LONNo
Voltage type of supply voltageAC/DC
Width72mm
Number of HW-interfaces other0
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPYes
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Supporting protocol for CANNo
With relay outputYes
Number of HW-interfaces Wireless0
Supporting protocol for ASINo
Rail mounting possibleYes
Supporting protocol for DeviceNetNo
Appendant operation agent (Ex ib)No
Explosion safety category for dustNone
Supporting protocol for Data-HighwayNo
Appendant operation agent (Ex ia)No
RedundancyNo
Explosion safety category for gasNone
Supporting protocol for PROFIBUSNo
Supporting protocol for other bus systemsNo
With optical interfaceNo
Supporting protocol for SUCONETNo
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
Front built-in possibleYes
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for EtherCATNo
Performance level according to EN ISO 13849-1None
Rack-assembly possibleNo
IO link masterNo
Supporting protocol for PROFINET IONo
Supporting protocol for SafetyBUS pNo
Supply voltage DC10.2 - 28.8V
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for AS-Interface Safety at WorkNo
Supply voltage AC 60 Hz20.4 - 26.4V
Supporting protocol for PROFIsafeNo
Radio standard BluetoothNo
Radio standard Wi-Fi 802.11No
Radio standard GPRSNo
Wall mounting/direct mountingYes
Basic deviceNo
Supply voltage AC 50 Hz20.4 - 26.4V
Supporting protocol for DeviceNet SafetyNo
Certified for UL hazardous location class IYes
SIL according to IEC 61508None
Radio standard UMTSNo
Radio standard GSMNo
Expansion deviceNo
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

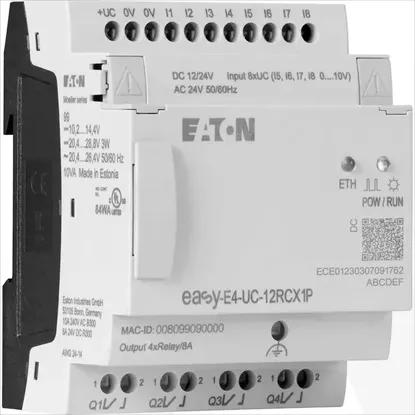

EASY-E4-UC-12RCX1P
