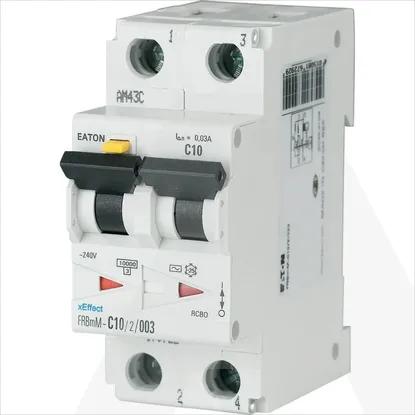

Details

  • •Circuit breakers and fuses
  • •Earth leakage circuit breaker
  • •1 KOM
  • •EATON

Technical specifications

Width in number of modular spacings2
Number of protected poles2
Over voltage category3
Voltage typeAC
Surge current capacity0.25kA
Rated voltage120V
Rated short-circuit breaking capacity according to IEC 60947-20kA
Built-in depth75.5mm
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Anti-nuisance tripping versionNo
With interlocking deviceNo
Current limiting class3
Release characteristicB
Connectable conductor cross section multi-wired1 - 25mm²
Pollution degree2
Frequency50/60 Hz
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Flush-mounted installationNo
Ambient temperature during operating-25 - 40°C
Disconnection characteristicUndelayed
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to EN 6100910kA
Rated current25A
Rated fault current0.03A
Leakage current typeA
Number of poles (total)2
