Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated voltage240V
Voltage typeAC
Rated current13A
Built-in depth70mm
Rated fault current0.03A
Current limiting class3
Connectable conductor cross section multi-wired1 - 25mm²
Leakage current typeF
Rated insulation voltage Ui250V
Flush-mounted installationNo
Over voltage category3
Pollution degree2
Concurrently switching neutral conductorNo
Number of poles (total)2
Width in number of modular spacings2
Release characteristicC
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-20kA
Ambient temperature during operating-25 - 40°C
Surge current capacity3kA
Anti-nuisance tripping versionNo
Number of protected poles2
Frequency50 Hz
Connectable conductor cross section solid-core1 - 25mm²
Rated impulse withstand voltage Uimp4kV
With interlocking deviceNo
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Disconnection characteristicShort-time delayed
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

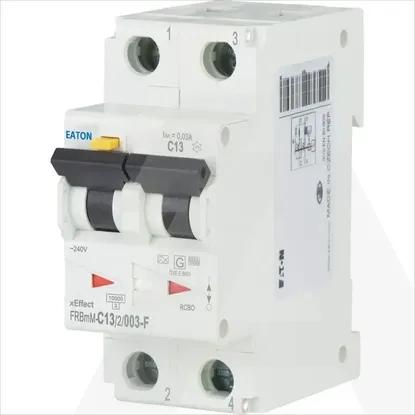

FRBmM-C13/2/003-F
