Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated voltage240V
Current limiting class3
Voltage typeAC
Surge current capacity3kA
Rated insulation voltage Ui250V
Release characteristicC
Rated fault current0.03A
Leakage current typeF
Built-in depth70mm
Rated current16A
Degree of protection (IP)IP20
Pollution degree2
Frequency50 Hz
Over voltage category3
Number of protected poles2
Width in number of modular spacings2
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Disconnection characteristicShort-time delayed
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
With interlocking deviceNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity according to EN 6100910kA
Number of poles (total)2
Anti-nuisance tripping versionNo
Ambient temperature during operating-25 - 40°C
Rated short-circuit breaking capacity according to IEC 60947-20kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

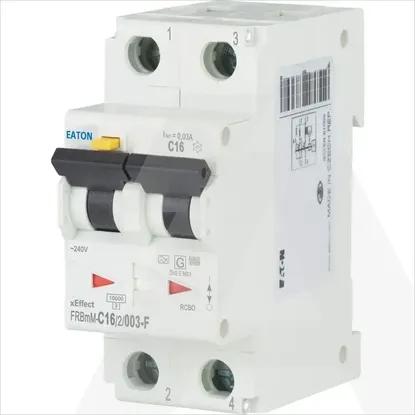

FRBmM-C16/2/003-F
