Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Rated current20A
Rated voltage240V
Degree of protection (IP)IP20
Rated insulation voltage Ui250V
Leakage current typeF
Current limiting class3
Release characteristicC
Built-in depth70mm
Over voltage category3
Number of protected poles2
Rated fault current0.03A
Frequency50 Hz
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Pollution degree2
Surge current capacity3kA
With interlocking deviceNo
Flush-mounted installationNo
Rated short-circuit breaking capacity according to IEC 60947-20kA
Connectable conductor cross section solid-core1 - 25mm²
Number of poles (total)2
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 40°C
Rated impulse withstand voltage Uimp4kV
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to EN 6100910kA
Disconnection characteristicShort-time delayed
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

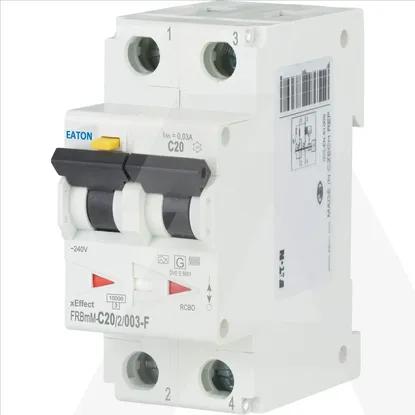

FRBmM-C20/2/003-F
