Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated voltage240V
Rated current25A
Built-in depth70mm
Voltage typeAC
Leakage current typeF
Release characteristicC
Surge current capacity3kA
Concurrently switching neutral conductorNo
Pollution degree2
Connectable conductor cross section multi-wired1 - 25mm²
Rated insulation voltage Ui250V
Current limiting class3
Degree of protection (IP)IP20
Rated fault current0.03A
Connectable conductor cross section solid-core1 - 25mm²
With interlocking deviceNo
Number of protected poles2
Rated short-circuit breaking capacity according to IEC 60947-20kA
Frequency50 Hz
Rated impulse withstand voltage Uimp4kV
Anti-nuisance tripping versionNo
Number of poles (total)2
Ambient temperature during operating-25 - 40°C
Flush-mounted installationNo
Over voltage category3
Width in number of modular spacings2
Disconnection characteristicShort-time delayed
Rated short-circuit breaking capacity according to EN 6100910kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

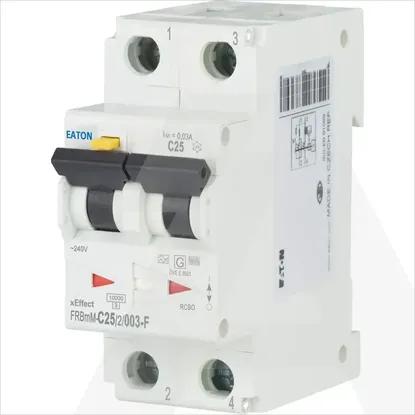

FRBmM-C25/2/003-F
