Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Built-in width130mm
Mounting methodCeiling surface mounting
Number of poles3
Voltage typeAC
Length228mm
Protection classII
Height/depth31mm
Conductor cross section2.5mm²
Colour housingWhite
Lamp holderNone
Power supply systemPeripheral (individual battery)
Connection typePlug-in connection
Width120mm
Built-in length245mm
Material coverPlastic, transparent
Colour temperature6500 - 6500K
Luminaire with limited surface temperature, sign "D“No
Nominal voltage230 - 230V
Lamp typeLED not exchangeable
Max. system power2W
Nominal operation time1 - 3h
With remote switch connectionYes
Rated luminous flux according to IEC 62722-2-1600lm
With pictogramNo
With light sourceYes
Impact strengthIK07
Material housingPlastic
Luminous flux in standby mode100lm
Number of lighting heads1
Degree of protection (IP)IP65
Built-in height/depth50mm
Suitable for number of lamps1
Light distributorFocal lens
Power factor0.4
Monitoring equipmentSafety module for monitoring (central feeded system)
Battery qualityLithium-ions
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

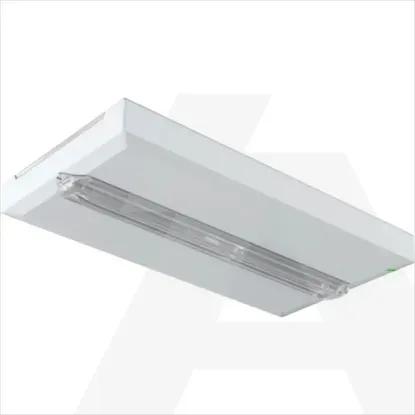

FT2SE600CGL13IP | Emergency luminaire FlexiTech SE 600LM Cgl+, 1-3H, IP65
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Built-in width
130mm
Mounting method
Ceiling surface mounting
Number of poles
3
Voltage type
AC
Length
228mm
Protection class
II
Height/depth
31mm
Conductor cross section
2.5mm²
Colour housing
White
Lamp holder
None
Power supply system
Peripheral (individual battery)
Connection type
Plug-in connection
Width
120mm
Built-in length
245mm
Material cover
Plastic, transparent
Colour temperature
6500 .. 6500K
Luminaire with limited surface temperature, sign "D“
Nominal voltage
230 .. 230V
Lamp type
LED not exchangeable
Max. system power
2W
Nominal operation time
1 .. 3h
With remote switch connection
Rated luminous flux according to IEC 62722-2-1
600lm
With pictogram
With light source
Impact strength
IK07
Material housing
Plastic
Luminous flux in standby mode
100lm
Number of lighting heads
1
Degree of protection (IP)
IP65
Built-in height/depth
50mm
Suitable for number of lamps
1
Light distributor
Focal lens
Power factor
0.4
Monitoring equipment
Safety module for monitoring (central feeded system)
Battery quality
Lithium-ions
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
