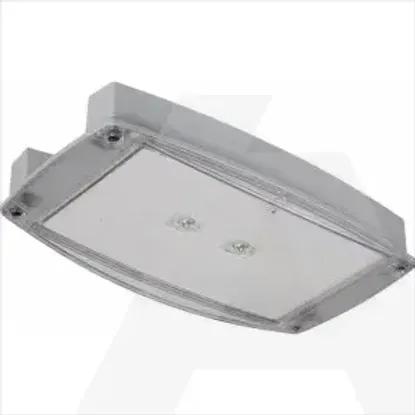

IP65LEDE3HIS | Emergency luminaire i-P65 LED, 3h, escape route, autotest
Code: 1957508
ManufacturerEaton
Catalog numberIP65LEDE3HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987026024
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Colour housingGrey
Connection typeScrew connection
Protection classI
Width55mm
Conductor cross section2.5mm²
Lamp holderNone
Voltage typeAC
Suitable for labelling typeSticker
Material housingPlastic
Type of control gearLED operating device current-controlled
Number of poles4
Number of lighting heads1
Built-in length263mm
Height/depth142mm
Battery qualityNiCd
With light sourceYes
Length263mm
Luminaire with limited surface temperature, sign "D“Yes
Built-in width55mm
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Power supply systemPeripheral (individual battery)
Material coverPlastic, transparent
Impact strengthIK10
With remote switch connectionYes
Monitoring equipmentAutomatic self test
Rated luminous flux according to IEC 62722-2-1148lm
Recognition distance20m
Colour temperature6200 - 6200K
With pictogramNo
Type of wiringSuitable for through wiring
Light distributorFocal lens
Rated ambient temperature according to IEC62722-2-15 - 40°C
Nominal operation time3 - 3h
Power factor0.5
Luminous flux in standby mode148lm
Built-in height/depth55mm
Degree of protection (IP)IP65
Max. system power2.5W
