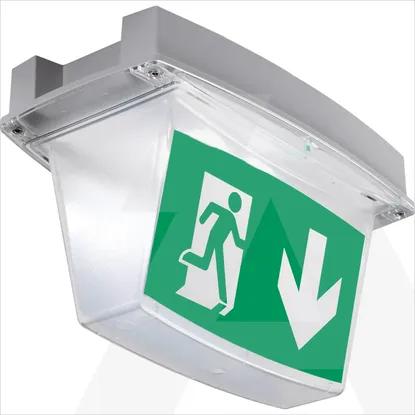

IP65LEDEX3HCGL | Emergency luminaire i-P65 LED 3h, Double side exit, CGL
Code: 1957512
ManufacturerEaton
Catalog numberIP65LEDEX3HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987195942
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Voltage typeAC
Connection typeScrew connection
Height/depth142mm
Type of indicatorSingle/double-sided
Lamp holderNone
Suitable for labelling typeSticker
Lamp typeLED not exchangeable
Built-in width165mm
Number of poles4
Colour housingGrey
Material housingPlastic
Length263mm
Conductor cross section2.5mm²
Power supply systemPeripheral (individual battery)
Type of control gearLED operating device current-controlled
Width165mm
Built-in length263mm
Number of lighting heads1
Protection classI
Battery qualityNiCd
Impact strengthIK10
Rated ambient temperature according to IEC62722-2-15 - 40°C
Rated luminous flux according to IEC 62722-2-1148lm
Monitoring equipmentSafety module for monitoring (central feeded system)
Recognition distance20m
Built-in height/depth165mm
Material coverPlastic, transparent
Nominal operation time3 - 3h
Light distributorFocal lens
Power factor0.5
With light sourceYes
Luminous flux in standby mode148lm
Luminaire with limited surface temperature, sign "D“Yes
Type of wiringSuitable for through wiring
With remote switch connectionYes
Nominal voltage220 - 240V
Colour temperature6200 - 6200K
With pictogramNo
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power2.5W
