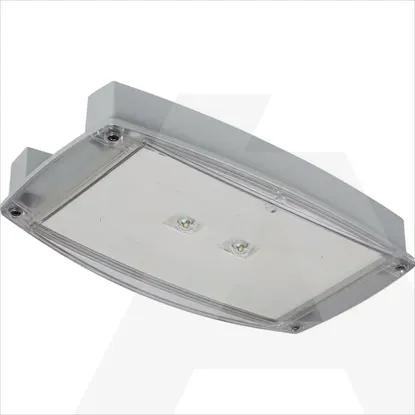

IP65LEDO3HCGL | Emergency luminaire i-P65 LED 3h, Open-space, CGL
Code: 1957518
ManufacturerEaton
Catalog numberIP65LEDO3HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987195959
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Width55mm
Lamp holderNone
Connection typeScrew connection
Conductor cross section2.5mm²
Type of control gearLED operating device current-controlled
With remote controlNo
Power supply systemPeripheral (individual battery)
Colour housingGrey
Voltage typeAC
Material housingPlastic
Suitable for labelling typeSticker
Built-in width55mm
Number of poles4
Length263mm
Lamp typeLED not exchangeable
Number of lighting heads1
Material coverPlastic, transparent
Built-in length263mm
Impact strengthIK10
Battery qualityNiCd
Nominal voltage220 - 240V
Recognition distance20m
Monitoring equipmentSafety module for monitoring (central feeded system)
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“Yes
With light sourceYes
Colour temperature6200 - 6200K
With pictogramNo
Height/depth142mm
Rated luminous flux according to IEC 62722-2-1153lm
Constant light output (CLO)No
Type of wiringSuitable for through wiring
Suitable for standby switchingNo
Exchangeable control gearNo
Luminous flux in standby mode153lm
Rated ambient temperature according to IEC62722-2-15 - 40°C
Nominal operation time3 - 3h
Light distributorFocal lens
Built-in height/depth55mm
Power factor0.5
Suitable for continuous circuitNo
FunctionEscape route lighting/signage
Degree of protection (IP)IP65
Max. system power2.5W
