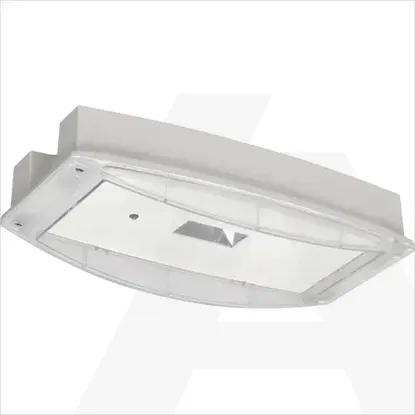

IP65PHP1HCGL | Emergency luminaire i-P65+ H, 1h, PC enclosure, escape route, CGLine+
Code: 1957525
ManufacturerEaton
Catalog numberIP65PHP1HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233248
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Width80mm
Lamp holderNone
Suitable for labelling typeOther
Number of poles4
Power supply systemPeripheral (individual battery)
Built-in width80mm
Connection typePlug-in connection
Conductor cross section2.5mm²
Colour housingGrey
Type of control gearLED operating device current-controlled
Voltage typeAC
Battery qualityNiCd
Lamp typeLED not exchangeable
Length340mm
Height/depth168mm
Material housingPlastic
Material coverPlastic, transparent
Built-in length340mm
Impact strengthIK08
Number of lighting heads1
Luminaire with limited surface temperature, sign "D“Yes
Nominal voltage220 - 240V
With light sourceYes
With remote switch connectionYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Colour temperature6200 - 6200K
Rated ambient temperature according to IEC62722-2-15 - 40°C
Nominal operation time1 - 1h
With pictogramNo
Rated luminous flux according to IEC 62722-2-1560lm
Type of wiringSuitable for through wiring
Light distributorFocal lens
Power factor0.5
Built-in height/depth168mm
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power2.8W
