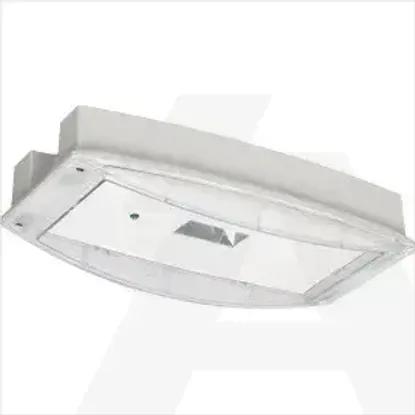

IP65PHP1HIS | Emergency luminaire i-P65+ H, 1h, PC enclosure, escape route, autotest
Code: 1957526
ManufacturerEaton
Catalog numberIP65PHP1HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233200
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Conductor cross section2.5mm²
Width80mm
Lamp holderNone
Protection classI
Built-in length340mm
Battery qualityNiCd
Colour housingGrey
Built-in width80mm
Power supply systemPeripheral (individual battery)
Colour temperature6200 - 6200K
Material coverPlastic, transparent
Number of lighting heads1
Number of poles4
Connection typePlug-in connection
Material housingPlastic
Length340mm
Suitable for labelling typeOther
With remote switch connectionYes
Type of control gearLED operating device current-controlled
Luminaire with limited surface temperature, sign "D“Yes
Lamp typeLED not exchangeable
Height/depth168mm
Voltage typeAC
Nominal voltage220 - 240V
Impact strengthIK08
With light sourceYes
Monitoring equipmentAutomatic self test
Built-in height/depth168mm
Nominal operation time1 - 1h
Rated luminous flux according to IEC 62722-2-1560lm
Light distributorFocal lens
Type of wiringSuitable for through wiring
With pictogramNo
Power factor0.5
Rated ambient temperature according to IEC62722-2-15 - 40°C
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power2.8W
