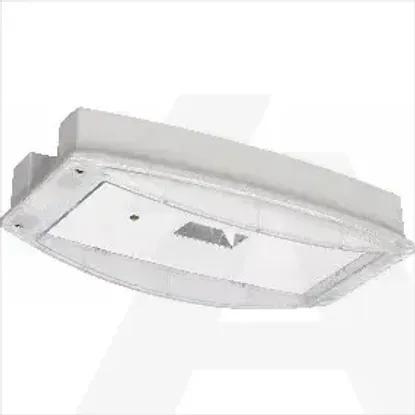

IP65PHP3HIS | Emergency luminaire i-P65+ H, 3h, PC enclosure, escape route, autotest
Code: 1957530
ManufacturerEaton
Catalog numberIP65PHP3HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233224
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Protection classI
Voltage typeAC
Connection typePlug-in connection
Lamp holderNone
Colour housingGrey
Width80mm
Conductor cross section2.5mm²
Power supply systemPeripheral (individual battery)
Length340mm
Type of control gearLED operating device current-controlled
Lamp typeLED not exchangeable
Suitable for labelling typeOther
Nominal voltage220 - 240V
Height/depth168mm
Built-in width80mm
Material housingPlastic
Luminaire with limited surface temperature, sign "D“Yes
Impact strengthIK08
With light sourceYes
Battery qualityNiCd
Material coverPlastic, transparent
Number of lighting heads1
Number of poles4
Built-in length340mm
Monitoring equipmentAutomatic self test
Rated luminous flux according to IEC 62722-2-1380lm
With pictogramNo
Type of wiringSuitable for through wiring
With remote switch connectionYes
Colour temperature6200 - 6200K
Power factor0.5
Rated ambient temperature according to IEC62722-2-15 - 40°C
Nominal operation time3 - 3h
Built-in height/depth168mm
Light distributorFocal lens
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power3.2W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
IP65PHP3HIS | Emergency luminaire i-P65+ H, 3h, PC enclosure, escape route, autotest
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Protection class
I
Voltage type
AC
Connection type
Plug-in connection
Lamp holder
None
Colour housing
Grey
Width
80mm
Conductor cross section
2.5mm²
Power supply system
Peripheral (individual battery)
Length
340mm
Type of control gear
LED operating device current-controlled
Lamp type
LED not exchangeable
Suitable for labelling type
Other
Nominal voltage
220 .. 240V
Height/depth
168mm
Built-in width
80mm
Material housing
Plastic
Luminaire with limited surface temperature, sign "D“
Impact strength
IK08
With light source
Battery quality
NiCd
Material cover
Plastic, transparent
Number of lighting heads
1
Number of poles
4
Built-in length
340mm
Monitoring equipment
Automatic self test
Rated luminous flux according to IEC 62722-2-1
380lm
With pictogram
Type of wiring
Suitable for through wiring
With remote switch connection
Colour temperature
6200 .. 6200K
Power factor
0.5
Rated ambient temperature according to IEC62722-2-1
5 .. 40°C
Nominal operation time
3 .. 3h
Built-in height/depth
168mm
Light distributor
Focal lens
Mounting method
Ceiling surface mounting
Degree of protection (IP)
IP65
Max. system power
3.2W
