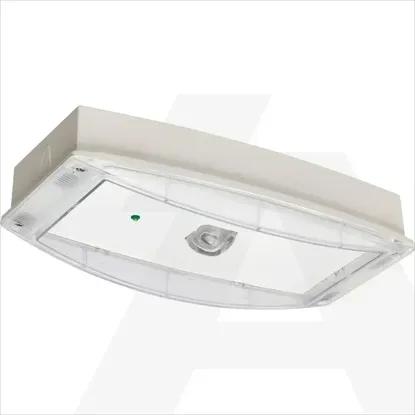

IP65PLA3HCGL | Emergency luminaire i-P65+ L, 3h, Al enclosure, open-space, CGLine+
Code: 1957533
ManufacturerEaton
Catalog numberIP65PLA3HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233347
Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Protection classI
Length340mm
Lamp holderNone
Colour housingGrey
Number of lighting heads1
Lamp typeLED not exchangeable
Material housingAluminium
Connection typePlug-in connection
Width167.9mm
Type of control gearLED operating device current-controlled
Power supply systemPeripheral (individual battery)
Voltage typeAC
Built-in width80mm
Height/depth80.5mm
Number of poles4
Conductor cross section2.5mm²
Suitable for labelling typeOther
Material coverPlastic, transparent
Nominal voltage220 - 240V
Built-in length340mm
With pictogramNo
Rated luminous flux according to IEC 62722-2-1510lm
With remote switch connectionYes
Monitoring equipmentSafety module for monitoring (central feeded system)
With light sourceYes
Battery qualityNiCd
Colour temperature6200 - 6200K
Nominal operation time3 - 3h
Luminaire with limited surface temperature, sign "D“Yes
Type of wiringSuitable for through wiring
Power factor0.5
Impact strengthIK08
Rated ambient temperature according to IEC62722-2-15 - 40°C
Light distributorFocal lens
Built-in height/depth168mm
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power3.2W
