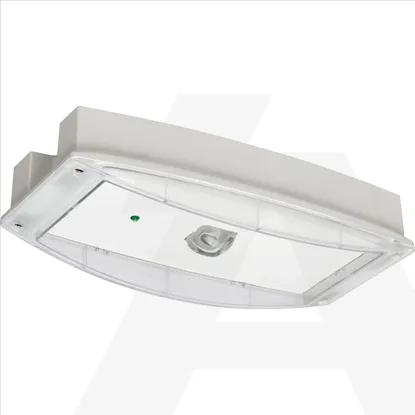

IP65PLP1HCGL | Emergency luminaire i-P65+ L, 1h, PC enclosure, open-space, CGLine+
Code: 1957536
ManufacturerEaton
Catalog numberIP65PLP1HCGL
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233231
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Height/depth168mm
Width80mm
Conductor cross section2.5mm²
Voltage typeAC
Built-in width80mm
Length340mm
Lamp holderNone
Material housingPlastic
Lamp typeLED not exchangeable
Connection typePlug-in connection
Colour housingGrey
Suitable for labelling typeOther
Power supply systemPeripheral (individual battery)
Number of poles4
Type of control gearLED operating device current-controlled
Number of lighting heads1
Built-in length340mm
Material coverPlastic, transparent
Impact strengthIK08
With light sourceYes
Luminaire with limited surface temperature, sign "D“Yes
Monitoring equipmentSafety module for monitoring (central feeded system)
Light distributorFocal lens
Nominal voltage220 - 240V
Battery qualityNiCd
Colour temperature6200 - 6200K
With remote switch connectionYes
Rated ambient temperature according to IEC62722-2-15 - 40°C
Rated luminous flux according to IEC 62722-2-1740lm
With pictogramNo
Type of wiringSuitable for through wiring
Power factor0.5
Built-in height/depth168mm
Nominal operation time1 - 1h
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power2.8W
