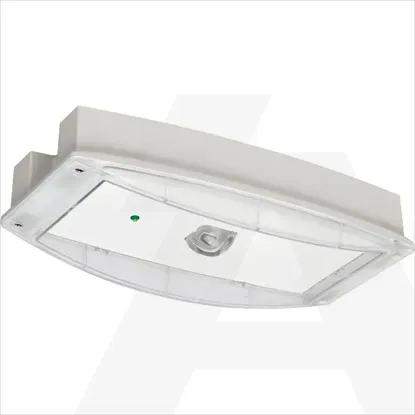

IP65PLP1HIS | Emergency luminaire i-P65+ L, 1h, PC enclosure, open-space, autotest
Code: 1957537
ManufacturerEaton
Catalog numberIP65PLP1HIS
TypeEmergency luminaire
CategoryEmergency luminaire
EAN code5018987233194
Details
- •Luminaires
- •Emergency luminaire
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Protection classI
Conductor cross section2.5mm²
Lamp holderNone
Width80mm
Connection typePlug-in connection
Colour housingGrey
Voltage typeAC
Suitable for labelling typeOther
Type of control gearLED operating device current-controlled
Nominal voltage220 - 240V
Material coverPlastic, transparent
Power supply systemPeripheral (individual battery)
Number of lighting heads1
Lamp typeLED not exchangeable
Height/depth168mm
Material housingPlastic
Length340mm
Number of poles4
Impact strengthIK08
Built-in width80mm
Battery qualityNiCd
Built-in length340mm
With light sourceYes
Rated luminous flux according to IEC 62722-2-1740lm
Colour temperature6200 - 6200K
With remote switch connectionYes
Luminaire with limited surface temperature, sign "D“Yes
Monitoring equipmentAutomatic self test
With pictogramNo
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-15 - 40°C
Power factor0.5
Nominal operation time1 - 1h
Light distributorFocal lens
Built-in height/depth168mm
Mounting methodCeiling surface mounting
Degree of protection (IP)IP65
Max. system power2.8W
